LOKRING Straight Al Reducing Connectors Type 50LOKRING NR Al 50
For connecting aluminium tubes and for connecting aluminium tubes to copper or steel tubes with different tube outer diameters.
IMPORTANT: When connecting aluminium tubes to copper tubes, use a heat shrink sleeve to protect the connection against corrosion.
Technical Data
- Max. operating pressure: 50 bar (725 psi).
- Admissible refrigerants: Suitable for all HCs, HFCs and mixtures. Not suitable for NH3.
- Temperature range: -50°C up to 150°C (-58°F up to 302°F).
- Tube diameter range: 6.35 to 35 mm (1/4" to 1 3/8").
- Minimum tube wall thickness: 0.8 mm.
Application
- Installation of HVAC systems
- Repair of Vehicle A/C systems
Material Combinations
>>>Al-Al>>>Al-Cu
>>>Al-St
Equipment
LOKTOOL LOKPRESS
- Special hydraulic valve for quick and safe assembling of LOKRING Connections of type 50.
- Diameters: 6 to 41.3…
LOKTOOL MZ-V
- Specially developed for the LOKRING assembly
- Patented lever mechanism for assembly with minimum effort
- Assembly…
LOKRING NK Al 50
For connecting aluminium tubes and for connecting aluminium tubes to copper or steel tubes with identical…
LOKRING VH Al
- For additional stabilisation of the LOKRING connection under mechanical loads.
- Supports calibration of coiled…
LOKPREP 65G
- Specially developed for the LOKRING assembly
- Must be used for all LOKRING assemblies
- Compensates for any…
AM-SV
- For cleaning tube ends without scratching
- Suitable for all surfaces
- Solvent-resistant
- Dimensions: 158 mm x 224…
LOKCLIP Al NK
- For assembling hose-to-tube connections.
- Plastic clip holder and two stainless steel clips included.
IMPORT…
Downloads
LOKRING tube connection assembly instructions version 50
pdf 2.86 MBLOKRING-LOKCLIP - For the best connections in vehicles
pdf 2.30 MBLOKRING-LOKCLIP - for special vehicles
pdf 3.06 MBInstallation of HVAC Systems
pdf 9.87 MBRepair of Vehicle A/C Systems

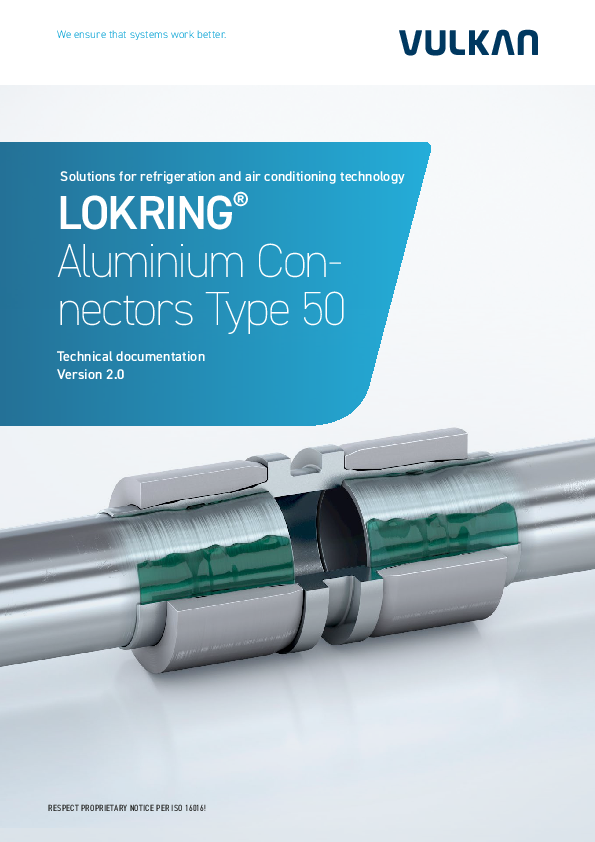

pdf 6.20 MBTechnical Documentation / Submittal Aluminium Connectors type 50
