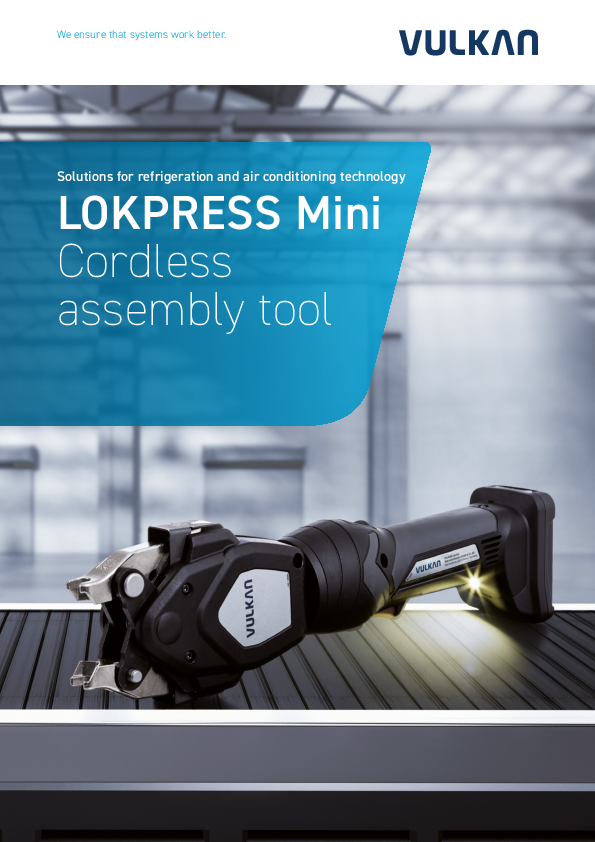

Cordless Assembly Tool LOKPRESS MiniLOKPRESS Mini Set-EU

[Translate to English:]

Features:


  • Lightweight for one-hand operation
  • Compact design for narrow space operation
  • Automatic stop after assembly for battery power saving
  • LED for work area illumination
  • Made in Germany


For LOKRING connectors:


  • Type 00 from 1.6 to 11 mm (1/16" to 3/8")
  • Type Ms 50 from 6 to 12.7 mm (1/4" to 1/2")
  • Type Al 50 from 6 to 16 mm (1/4" to 5/8")


NOTE: The LOKPRESS Mini comes without assembly jaws.

Videos

Technical Data

    • Dimensions incl. rechargeable battery (H x W x L): approx. 111 x 71 x 393 mm
    • Operating temperature: -10°C up to 40°C (14°F up to 104°F)
    • Battery charger: 100-240V~ | 50-60Hz | 35W
    • Rechargeable battery: 10.8V / 1.5 Ah Li-Ion
    • Recharge time: 40 min.
    • Number of pressings: Minimum 100
    • Weight incl. rechargeable battery: approx. 2.2 kg (4.85 lb)

    Application

    • OEM | Production
    • Repair of Refrigeration Appliances

    Equipment

    LOKPRESS Mini PC

    Robust plastic case for easy transportation of the LOKPRESS Mini tool set.

    …
    go to product

    LOKRING NK Ms 00

    For connecting copper and/or steel tubes with identical tube outer diameters.

    …
    go to product

    LOKRING NK Al 00

    For connecting aluminium tubes and for connecting aluminium tubes to copper or steel tubes with identical…

    go to product

    LOKRING NK Ms 50

    For connecting copper and/or steel tubes with identical tube outer diameters.

    …
    go to product

    LOKRING NK Al 50

    For connecting aluminium tubes and for connecting aluminium tubes to copper or steel tubes with identical…

    go to product
