Hydraulic Flaring ToolsLOKTOOL HFT

[Translate to English:]

The hydraulic flaring tool is designed for the flaring of aluminium tubes for the production of LOKRING SINGLE RING tube joinings. It is connected to the LOKRING hydraulic aggregate by two 2.8 m hydraulic hoses. The forward and backward movement of the flaring insert is enabled by means of a double acting cylinder. The size of the clamping jaw and the flaring insert depends on the outside tube diameter.

Videos

Technical Data

    • Suitable tube material: Aluminium
    • Max. tube outside diameter: 1/2“ / 12.7 mm*
    • Max. tube wall thickness: 1.0 mm*
    • Operating pressure: up to 300 bar
    • Flaring time: approx. 1 sec.
    • Weight: approx. 1.6 kg
    *Further dimensions on special request.

      Application

      • OEM | Production

      Equipment

      LOKTOOL HA

      The LOKRING hydraulic aggregate produces the required working pressure for the flaring and assembly tools.…

      go to product

      LOKRING Single Ring

      LOKRING SINGLE RING is a custom designed product for each application. Its design takes into account the tube…

      go to product

      LOKPREP 61AL/61S

      LOKPREP was developed especially for LOKRING assembly and must always be used wherever LOKRINGs are to be…

      go to product

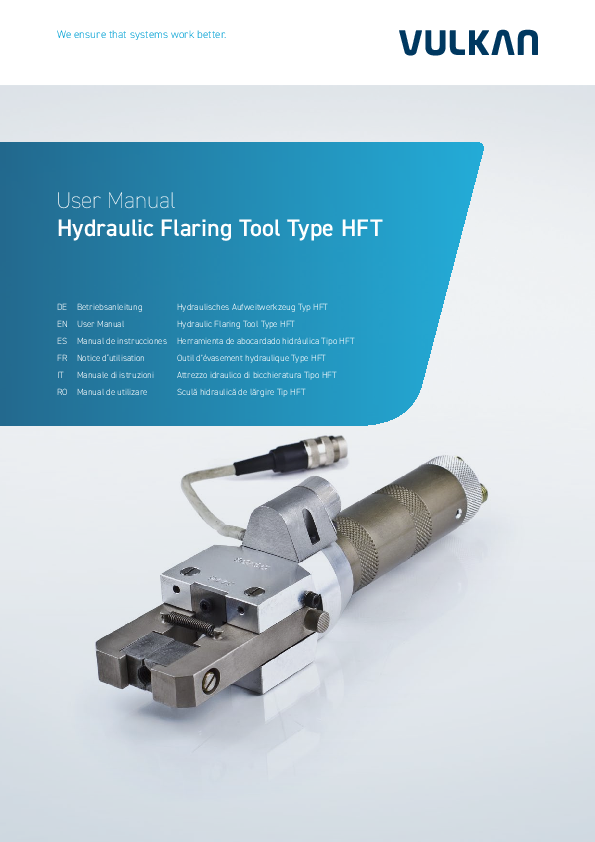

      Downloads
